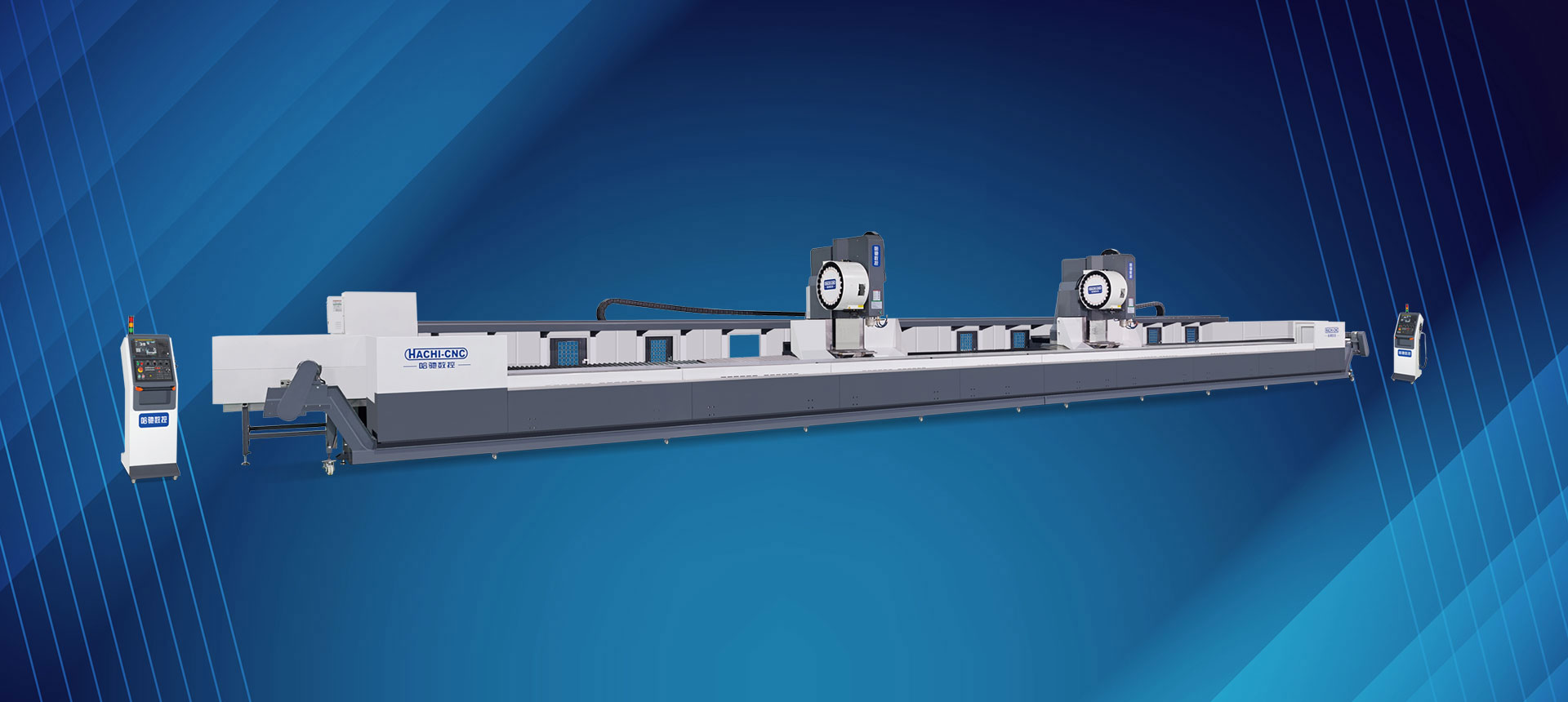

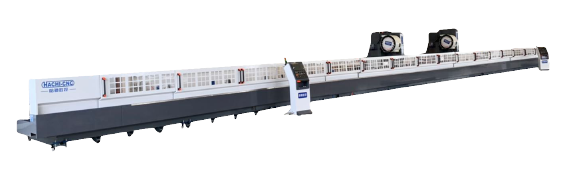

X AXIS EXTRA LONG DOUBLE HEAD PROFIL E MACHINING CENTER

Product display/download

Product parameters

Equipment Introduction: This equipment sets milling, drilling, tapping as one of the automatic composite profile machining center
Applicable profile: Suitable for processing all kinds of super - length aluminum profile processing
Configuration introduction: Equipped with double spindle, double moving column, double operating cabinet, imported high-end control system, optional automatic chip removal machine
Application: INew energy profile processing, rail transit, etc
Feature overview: Big roller rail, super rigid. Large diameter precision lead rod,Y-axis/Z-axis large stroke (Y-axis 550-800mm/ Z-axis 550-700mm)

HGE-C2WS Series parameter HGE-C2WS Series Technical parameter table

	Project		Unit	Parameter
TRAVELS	X Axis		mm	8000-30000
	Y Axis		mm	600
	Z Axis		mm	600-700
	The distance from the nose of the spindle to the end of the table		mm	140
Move	Moving speed X/Y/Z		m/min	60	28	28
	Cutting feed rateX/Y/Z		mm/min	15000	15000	15000
PRECISION	Cutting feed rate X/Y/Z		mm	±0.05	0.02	0.02
	Repeat positioning accuracy X/Y/Z		mm	±0.02	0.02	0.02
Spindle	Maximum speed		rpm	12000
	Spindle taper			BT40Standard taper
	Spindle taper			BT40
PORWER OF MOTOR	Driven motor	Power X/Y/Z	mm	3.0/3.0/3.0
	Spindle driven motor	Power	KW	11
