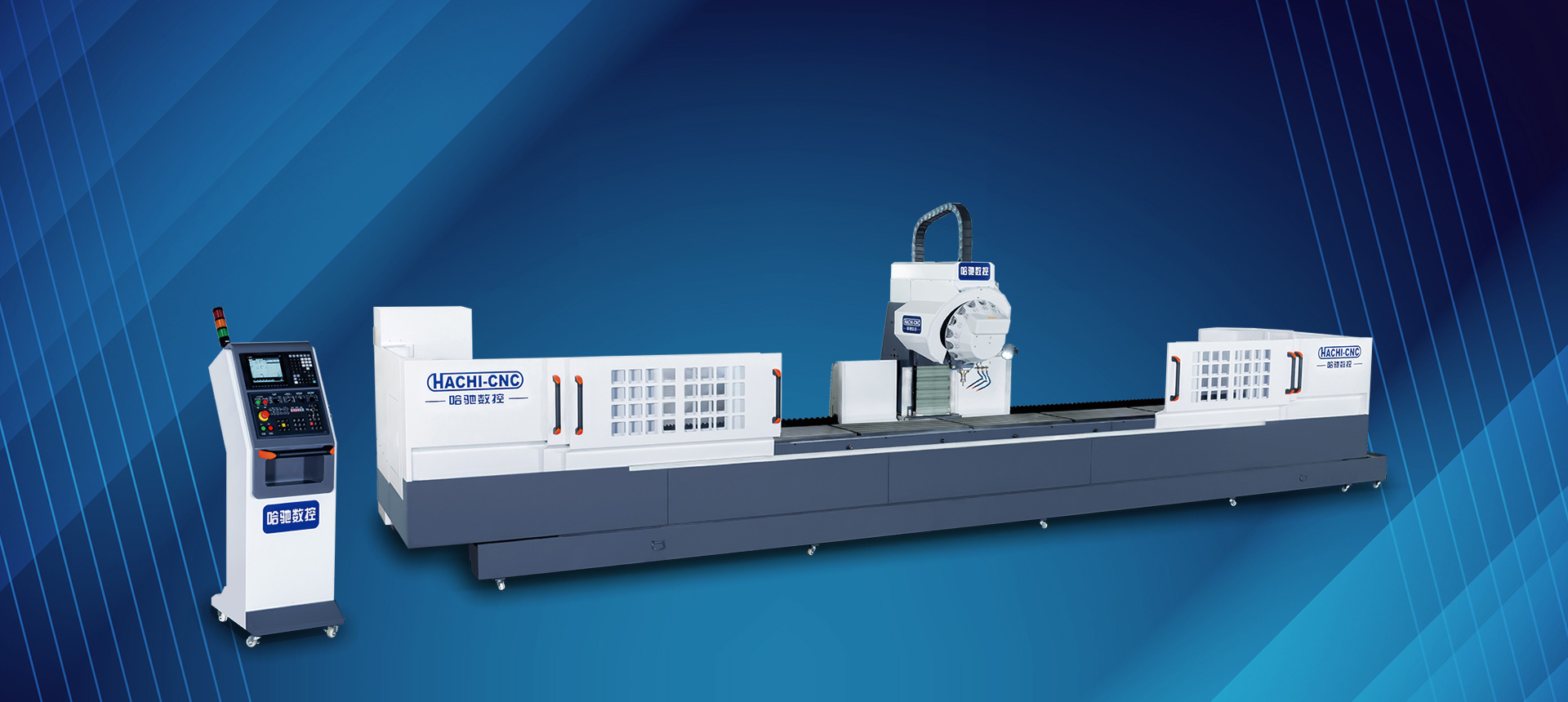

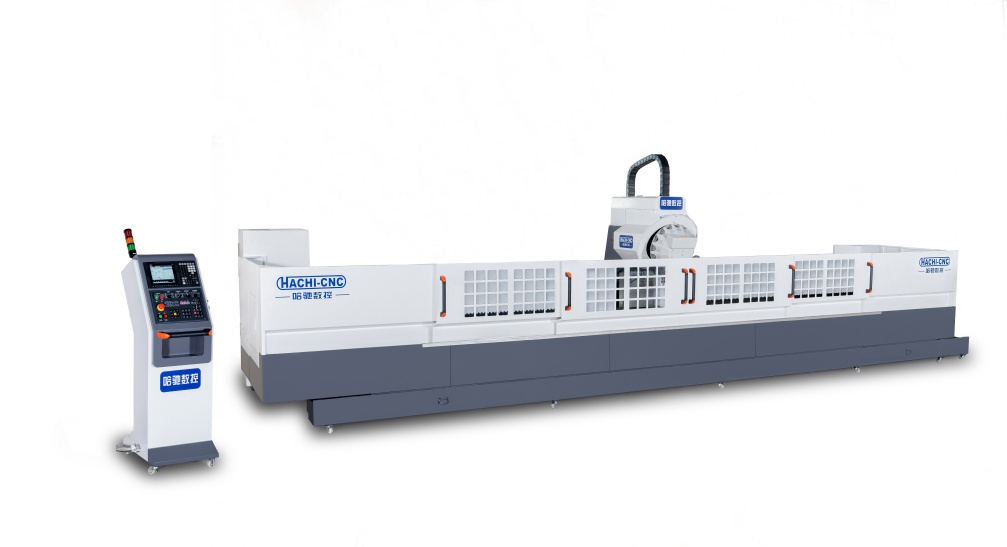

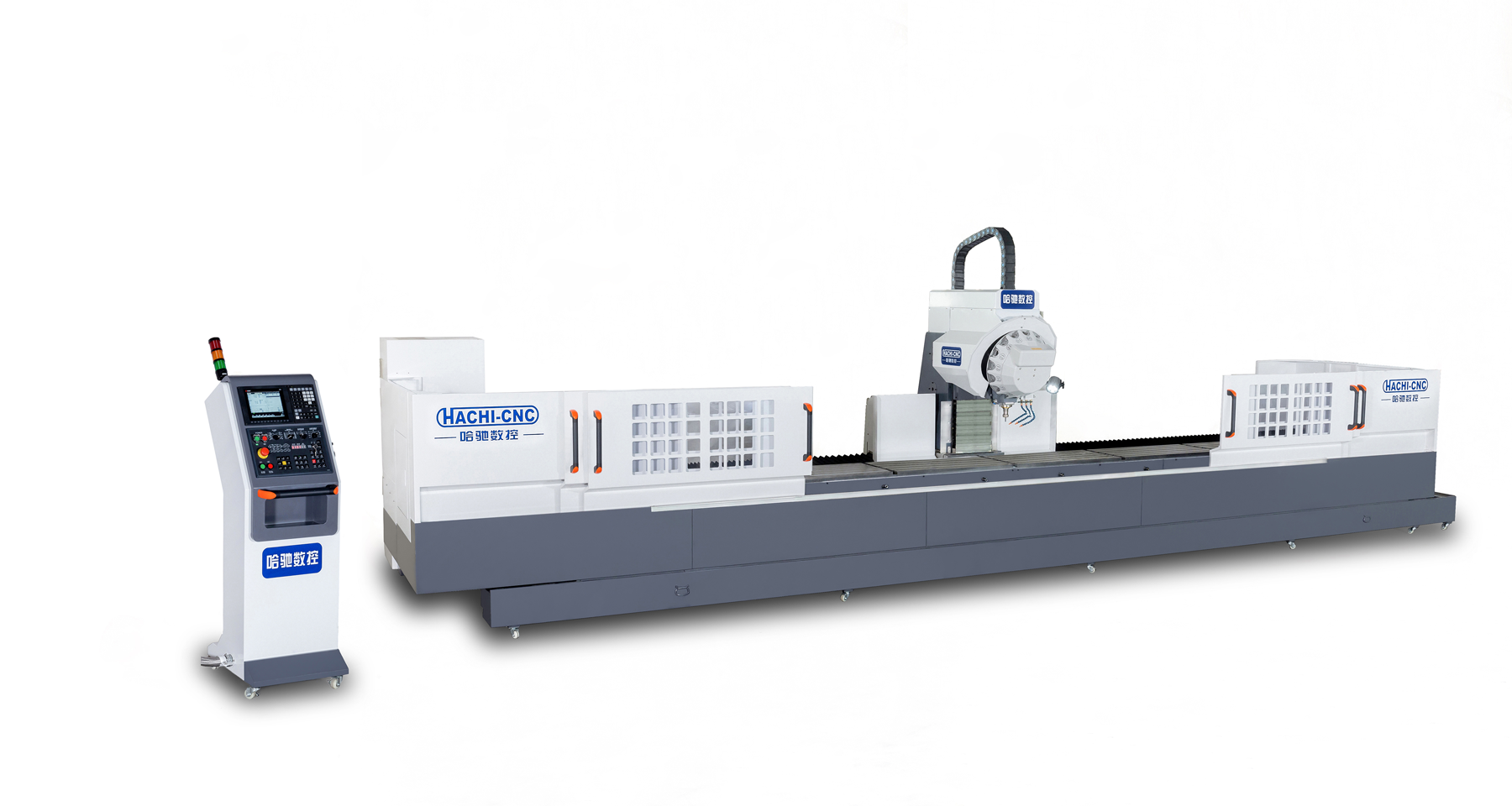

Equipment introduction:This equipment is an automatic composite profile processing center integrating milling,drilling and tapping.It is suitable for processing various lengths of copper,light aluminum,aluminum alloy profiles and non-metallic frames.
Configuration introduction:BT30 spindle taper hole;flying saucer-type tool magazine and high-speed spindle motor.
Application areas:Intelligent customized home,electronic and electrical components,high-end doors and Windows,curtain wall profile processing,etc.
Feature overview:with high speed,high precision characteristics
Welding frame bed HQ2500/HQ4500/HQ6500

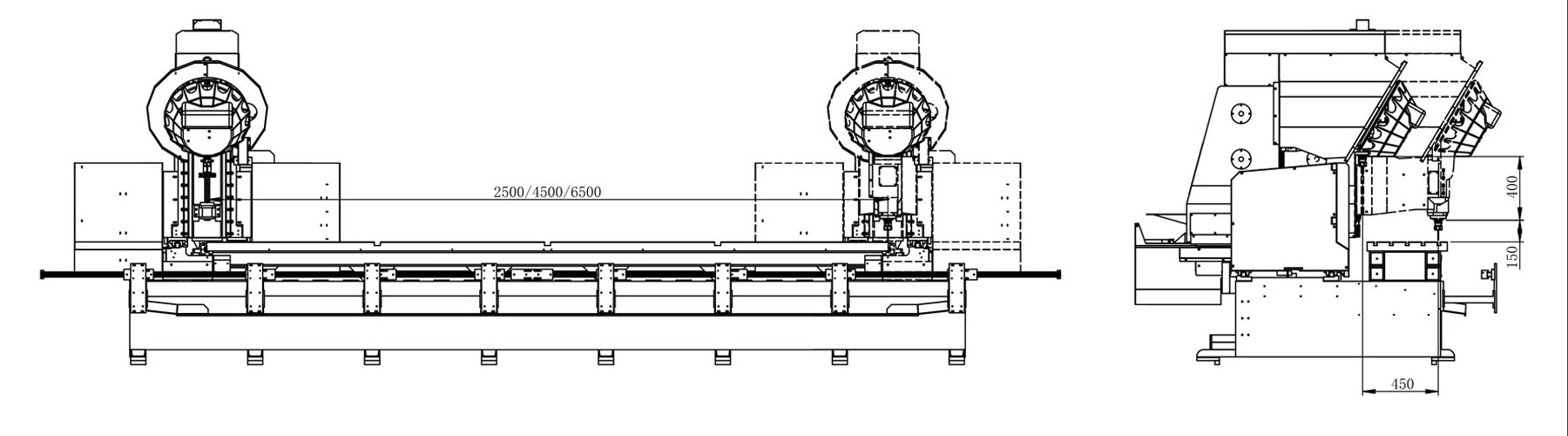

HQ Series Technical parameter table
| Project | Unit | Parameter |
| TRAVELS | X Axis | mm | 2500-6500（Other lengths can be customized） |
| Y Axis | mm | 400 |
| Z Axis | mm | 400 |
| The distance from the nose of the spindle to the end of the table | mm | 150 |
| Move | Moving speed X/Y/Z | m/min | 60 | 28 | 28 |
| Cutting feed rate X/Y/Z | mm/min | 15000 | 15000 | 15000 |
| PRECISION | Cutting feed rate X/Y/Z | mm | 0.05 | 0.02 | 0.02 |
| Repeat positioning accuracy X/Y/Z | mm | 0.02 | 0.02 | 0.02 |
| Spindle | Maximum speed | rpm | 15000/20000 |
| Spindle taper |
| BT30 Standard taper |
| Spindle taper | mm | 100 |
| PORWER OF MOTOR | Driven motor | Power X/Y/Z | mm | 1.5/1.5/3.0 |
| Spindle driven motor | Power | KW | 5.5 |
| Project | Unit | Parameter |
| TOOLS | Tool changer format |
| Flying saucer |
| Spindle taper |
| BT30 |
| Tool capacity | sec | 16 |
| Tool change time | sec | 2 |
| Pull studs format |
| 45° |
| LUBRICATING SYSTEM | Lubricating system |
| Automative lubricating |
| Cooling system |
| Water cooling system |
| POWER | Electricity | KVA | 20（380V、50HZ）KVA |
| Gas source | mpa | 0.6Mpa-0.9Mpa |
| MECHNICAL SPECIFICATION | Operating system |
| MITSUBISHHI |
| Overall height |
| About 3000 |
| Machine width | mm | About 2850 |
| Overall length | mm | About 6100-10500 |
| Area | mm³ | About 6100-10500*2850 |
| Weight | KG | About 5000-11000KG |
