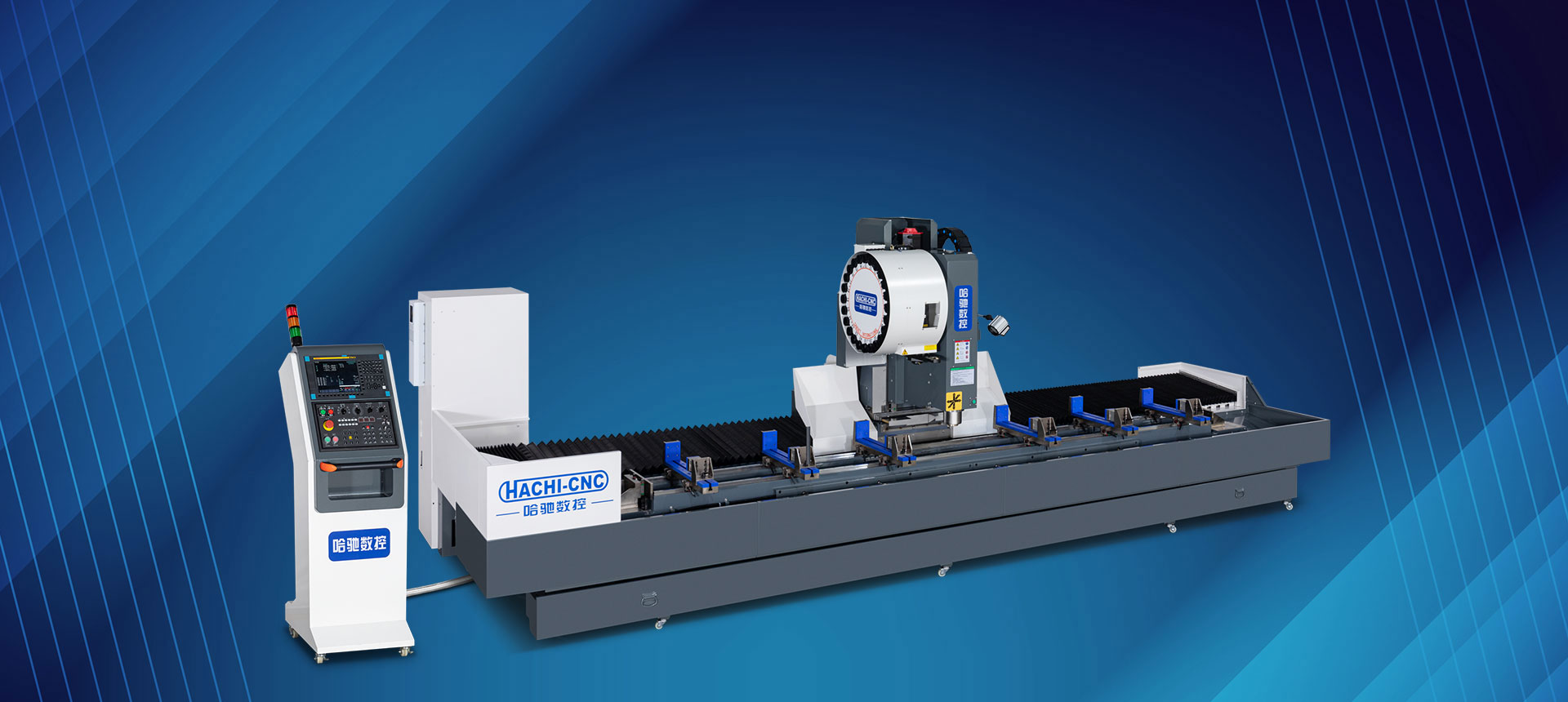

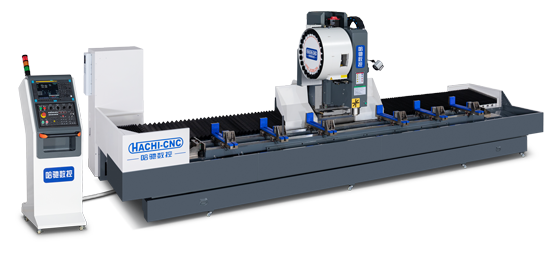

BT40 PROFILE MACHINING CENTER (HVX SERIES)

View the cable tray diagram

Product display/download

Product parameters

Equipment Introduction:This equipment sets milling,drilling,tapping as one of the automatic composite profile machining center
Suitable profile:Used for processing all kinds of steel,aluminum,copper and non-metal profiles
Configuration description:120mm diameter BT40 spindle,imported high-end control system,simple structure design,easy to operate
Application:Doors and Windows curtain wall,smart home,light aluminum frame profile processing,etc

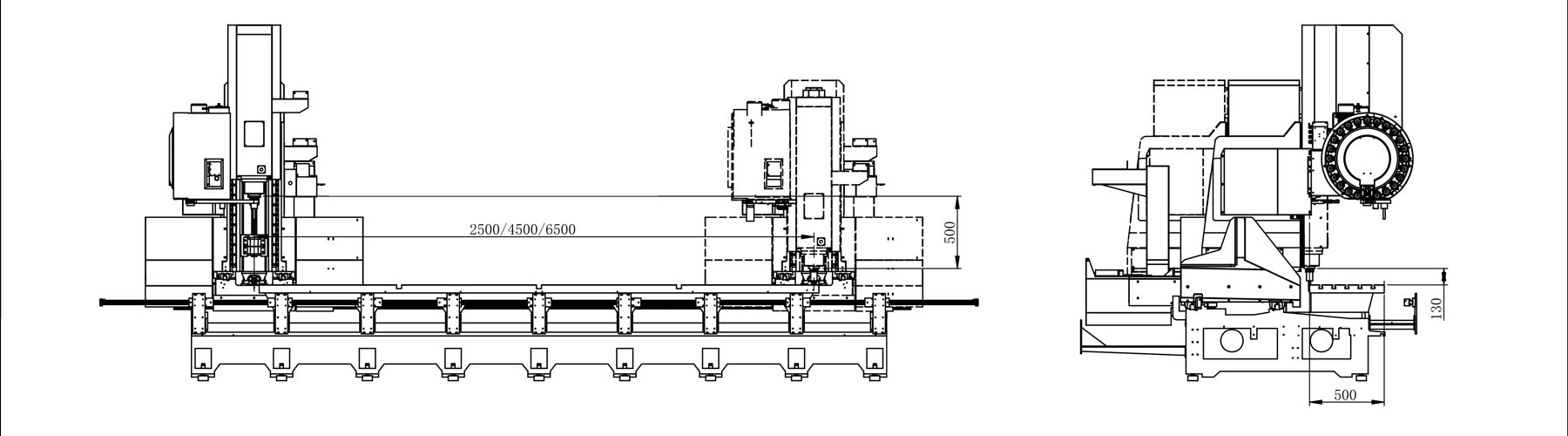

Welding frame bed HVX 2500/HVX 4500/ HVX 6500

HVX Series Technical parameter table

	Project		Unit	Parameter
TRAVELS	X Axis		mm	2500-6500
	Y Axis		mm	500
	Z Axis		mm	500
	The distance from the nose of the spindle to the end of the table		mm	130
Fixture	Clamping range (L * W)		mm	0-420
	Maximum platform load		KG	3000
	Width of clamp T-groove		mm	15
	Number of clamps (optional)		个	6
Move	Moving speed X/Y/Z		m/min	60	28	28
	Cutting feed rate X/Y/Z		mm/min	15000	15000	15000
PRECISION	Cutting feed rate X/Y/Z		mm	0.05	0.02	0.02
	Repeat positioning accuracy X/Y/Z		mm	0.02	0.02	0.02
Spindle	Maximum speed		rpm	12000
	Spindle taper			BT40 Standard taper
	Spindle taper			BT40
PORWER OF MOTOR	Driven motor	Power X/Y/Z	mm	3.0/3.0/3.0
	Spindle driven motor	Power	KW	11
